John Deere M - Woods L59 Belly Mow... - Yesterday's Tractors I bought an M last fall that included an L59 Woods belly mower. I am working on installing the mower now and have a question... If I align the big pulley on the pto so that the belt will travel nicely into the two lower small pulleys the big pulley is barely engaging the pto shaft. Parts for Woods L306 Series Undermount Finish Mowers ... Woods L306 Parts Diagram Lookup If your model is in the list below, click "Select Assembly" to choose the correct parts diagram. If you do not find your model in the list click on the "New Model" button to search for your model of equipment, or feel free to give us a call

Farmall Super A with Woods L59 bellymower belt - Technical ... According to the book the standard belt for a L59 is a B255, short belt is a B248, and long belt is a B263. It makes no distinction on tractor make or model. The list includes Ford, Oliver, JD, and Massey as well as the IHCs listed. I would think a Super A would take the same belt as a B.

Woods l59 belly mower belt diagram

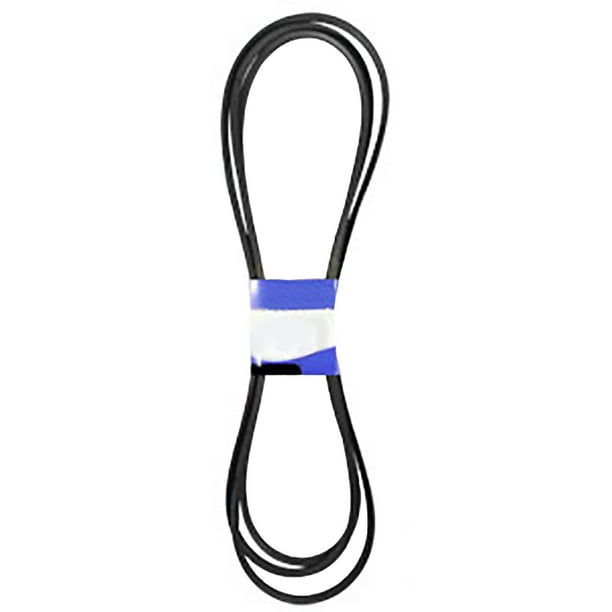

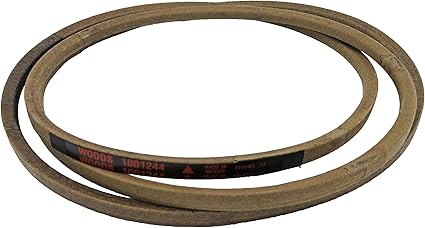

Woods L59 Mower Deck Replacement Belt - V-Belt Guys Woods L59 Mower Deck Replacement Belt Original Equipment Manufacturer Woods OEM Part Number 4152 Machine Mower Deck Model L59 Belt Type 5LK/BK Aramid VBG Replacement Id APPL660708 Technical Specifications: (Inches) (mm) Outside Circumference 215.00 5461.00 Top Width 0.63 15.88 Belt Depth 0.375 9.525 Bands Single Belt Material Aramid Woods L59 belt diagram? - Yesterday's Tractors Re: Woods L59 belt diagram? in reply to dej(Jed), 07-23-2014 05:37:51 Allen"s directions are exactly how to put one on a B AC and are easier to follow than deciphering the diagram. Also, make sure your sheaves (pulleys) are clean and free of nicks and burrs and I run that belt just as tight as I can get it. woods l59 mower products for sale - eBay 6 REPL USA WOODS MOWER BLADES 60" CUT RM59 RM500 L59 F35 31359 91-761 345-777. 5 out of 5 stars. (2) 2 product ratings - 6 REPL USA WOODS MOWER BLADES 60" CUT RM59 RM500 L59 F35 31359 91-761 345-777. $64.95.

Woods l59 belly mower belt diagram. Woods L59 Mower In Lawn Mower Parts & Accessories - eBay Shop great deals on Woods L59 Mower In Lawn Mower Parts & Accessories. Get outdoors for some landscaping or spruce up your garden! ... WOODS L59 BELLY MOWER DECK BELT COVER GUARD SET AC B OR C ALLIS CHALMERS TRACTOR. $199.99. $0.01 shipping. 3PK Lawn Mower Blades for Woods 60" L59 RM59 RM500 23825 31359 31359KT. $47.99. Was: $69.99. Free shipping. PDF Woods L306 | L59 Mower Attachment Operators Manual with 3/8 x 1" bolts and flat washers. On mowers with bent-down front frame, bolt leaf Mutcher to inside of mower in holes drilled in front frame using 3/8 x 1" bolts on l306, and on L59's use 3/8 x 1-1/2 bolts and 5/8 long pipe spacers between leaf mulcher Clnd mower. On some mowers Woods L59 belt diagram? - Tractor Talk Forum - Yesterday's ... Posted: Wed Jul 23, 2014 5:11 am Post subject: Re: Woods L59 belt diagram? 1. Insert belt in bottom right-hand groove of center pulley and route around left pulley. 2. Bring belt to center pulley and insert in middle groove. Thread around right pulley. 3. Route belt to center. Insert at pulley in top groove and pull to rear. Woods mower on Allis C - belt size? - Talking Tractors ... Figured out how to route the belt on a friends Woods belly mower on his Allis Chalmers C. Of course theres no data plates or stickers left on it, but it appears to be a Woods L59. It discharges to the left and runs of a side pto pulley st the rear of the tractor.

Woods Belly Mower Belt Diagram - schematron.org The Woods L59 mower deck attachment, designed for individuals with large Draw a diagram of the belt routing over the pulley system on the mower deck. Does anyone have a routing diagram that shows how to thread the belt on a 5- foot WOODS three-blade belly-mower that goes under a HP R Mitsubishi . schematron.org under Product Registration. Woods L59AC/B-1 Allis-Chalmers B Undermount/Mid-mount ... Parts list and parts diagram for a L59AC/B-1 Allis-Chalmers B Undermount/Mid-mount Rotary Cutter Mower Frame Assembly - White ... Woods L59AC/B-1 Allis-Chalmers B Undermount/Mid-mount Rotary Cutter L59AC/B-1 Allis-Chalmers B. ... 59-L59 LT BELT SHIELD: $91.92: Add to Cart. 11: PDF Woods Undermount Mowers for 'Vintage' Tractors Woods undermount mowers are available for most tractors, old, new, foreign and domestic. Your Woods dealer has a complete listing of undermount mowers designed to fit both your mowing job and your tractor. Woods Model 59 cuts a 5 ft. swath, mows 21/2 acres per hr, Recommended for tractors u -to 30 h JOHN DEERE M All mowers are illustrated with Allis Chalmers B with Woods L59 mower - Allis Chalmers ... That mower is a lot smaller than a L59. I have a U306 that I use weekly to keep all of the grass mowed, but it is a side pto drive. I have agreed to purchase an L59 for a C in Mo, but it also is side drive. Woods has a belt diagram on their site which shows exactly where the twists are supposed to take place, I believe in pdf form.

Woods L59 Belly Mower Belt Diagram - Diagram Resource Gallery Woods l59 belly mower belt diagram. Notjustair tractor guru joined. Your woods dealer has a complete listing of undermount mowers designed to fit both your mowing job and your tractor. Hello and thank you in advance for any help. L59 b192 undermount mid mount parts catalog lookup. Looking for parts for woods l59 series undermount finish mowers. Parts & Support - Woods Equipment Maintain the quality and performance of your equipment with Woods genuine replacement parts. Available from your authorized Woods dealer. Find a Dealer; ... Remove the mower drive belt and store to prevent hard spots from developing in the belts where it wraps around the pulleys. Lubricate all pivot points and grease blade spindle bearing to ... Woods Equipment L36, L59 User Manual Belt whip is caused by belt misalignment unless mower is driven by a rough-running or 2-cylinder engine. Proper position of L59 and L306 : Adjust mower forward and back to such a position that the rear take-up idlers are near the bottom of their slots when the belt lines up with the proper groove in the center pulley and is tight. Woods L59 B192 Undermount & Mid-mount Parts - Messick's L59 B192 UNDERMOUNT & MID-MOUNT CATALOG SEARCH. note: use keywords or part numbers instead of full sentences for best results. examples: 737-3025, 1234, filter, oil, pump, etc.

Belt size for a l59 woods mower deck and farmall cub ... Belt size for a l59 woods mower deck and farmall cub tracto. Post by joedauphin » Fri Aug 24, 2012 9:51 pm . Does anyone know the belt size for a l 59 woods mower deck and farmall cub tractor? I will need to twist the belt to achieve the proper rotation. I did look thru the old posts and I seem to read conflicting sizes.

Simplicity 1690373 - 60" Rotary Mower Center Mounted Parts ...

Woods 59 belly mount mower question - General Chat - Red ... Posted January 11, 2021. I take care of my neighbors Cub and the Woods 59 belly mower on it. The mower deck has some severe rust on it to the point that the mower spindle on the right side has a major hole next to where it mounts. Last summer he bought a complete mower and this winter's project was to change the mowers but there is a problem.

How to replace a mowing deck belt using Woods RD60 60" mowing deck

How to Put a Belt on a Woods L59 Mower | eHow The Woods L59 mower deck attachment, designed for individuals with large yards or pastures, mounts to the bottom of moderate to large tractors. Fortunately, since tractors rest high off the ground, you can lower the Woods mower deck to allow easy access to the belt system.

Woods L59 Belt Diagram - schematron.org The Woods L59 mower deck attachment, designed for individuals with large Draw a diagram of the belt routing over the pulley system on the mower deck. A diagram will be on the belly of the mower. If not the owners manual will have it.

Woods Undermount/Mid-Mount Rotary Cutter Parts | Woods Parts German Bliss makes it easy to shop Woods rotary cutter parts online with parts diagrams and list of available parts for purchase. ... Woods L59 H274-2 Rotary Mower Undermount/Mid-mount Rotary Cutter ... Woods 59HC-1 IH 200, C With Belt Pulley;Super C With Belt Undermount/Mid-mount Rotary Cutter ...

Woods L59 Belly Mower Manual - Diagram Niche Ideas Woods l59 belly mower manual. Farmall a farmall super a $900 call or text. Browse our inventory of new and used woods l59 for sale near you at tractorhouse.com. I own a s650g and it has a woods l59 on it. How to put a belt on a woods l59 mower. Amazon's choice for manual push mower. You can adjust your cookie preferences at the bottom of this page.

3 REPLACEMENT WOODS LAWN MOWER BLADES 60" CUT RM-59 23825 SET | eBay

Parts for Woods L59 Series Undermount Finish Mowers ... Woods L59 Parts Diagram Lookup. If your model is in the list below, click "Select Assembly" to choose the correct parts diagram. If you do not find your model in the list click on the "New Model" button to search for your model of equipment, or feel free to give us a call. This is the most current part for this model.

Questions on Woods 59 Mower Set-up - Farmall Cub The woods part number really doesnt mean anything. The length of the belt does. All standard cubs with a left or righ hand mower with woods 59 take a 210 inch 5/8 in wide (B 210) belt. first measure the belt you have. If its the correct length then your mower is mounted too far ahead.

How to Put a Belt on a Woods L59 Mower - YouTube How to Put a Belt on a Woods L59 Mower. The Woods L59 mower deck attachment, designed for individuals with large yards or pastures, mounts to the bottom of m...

PDF Woods L306 For Farmall Super C - ofs.wiedemannlampe.com 'belt on woods mower Farmall amp International Harvester May 7th, 2018 - belt on woods mower discussion in the Farmall here is a copy of the belt routing and adjustment for the woods l59 and l306 mowers i Compare our super low''Need Belt Diagram For A Woods L306 Belly Mower Fixya

PDF Woods L59F8N-1, L306F8N-1 Belly Mower for Ford Ferguson ... WOODS rotary mower F-658B (11-78) WOODS ROTARY MOWERS ARE BUILT FOR SERVICE Page ... 59, L59 a L306 OPERATING & SERVICING INSTRUCTIONS MOWING GRASS: Woods Model 59. ... Z proper Belt Tension WOODS. Division Of Hesston Corporation Illinois IMPORTANT Alignment must be if it

woods l59 mower products for sale - eBay 6 REPL USA WOODS MOWER BLADES 60" CUT RM59 RM500 L59 F35 31359 91-761 345-777. 5 out of 5 stars. (2) 2 product ratings - 6 REPL USA WOODS MOWER BLADES 60" CUT RM59 RM500 L59 F35 31359 91-761 345-777. $64.95.

Woods L59 belt diagram? - Yesterday's Tractors Re: Woods L59 belt diagram? in reply to dej(Jed), 07-23-2014 05:37:51 Allen"s directions are exactly how to put one on a B AC and are easier to follow than deciphering the diagram. Also, make sure your sheaves (pulleys) are clean and free of nicks and burrs and I run that belt just as tight as I can get it.

Woods L59 Mower Deck Replacement Belt - V-Belt Guys Woods L59 Mower Deck Replacement Belt Original Equipment Manufacturer Woods OEM Part Number 4152 Machine Mower Deck Model L59 Belt Type 5LK/BK Aramid VBG Replacement Id APPL660708 Technical Specifications: (Inches) (mm) Outside Circumference 215.00 5461.00 Top Width 0.63 15.88 Belt Depth 0.375 9.525 Bands Single Belt Material Aramid
