40 the stress-strain diagram for a steel alloy having an original diameter of 0.5 in

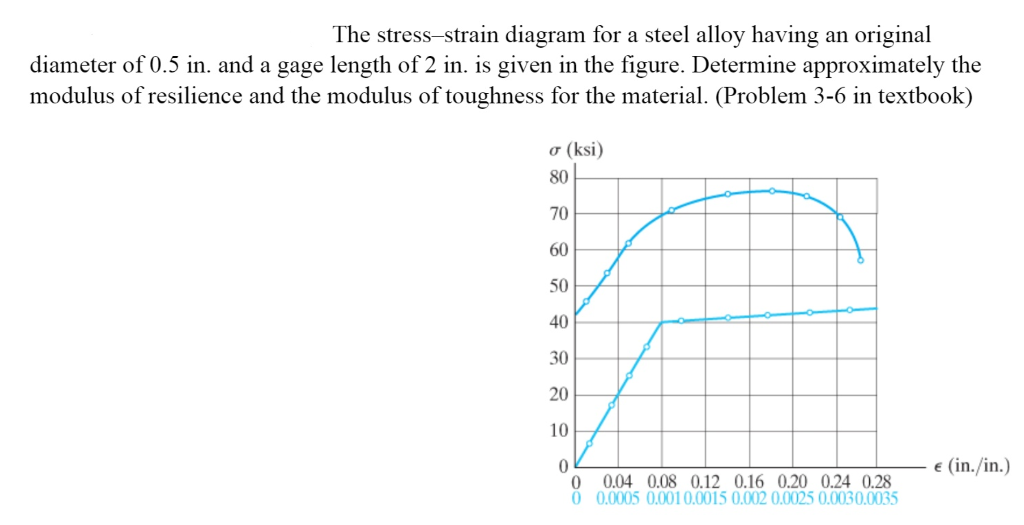

The stress-strain diagram for a steel alloy having an origin ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 0.5 in and a gage length of 2 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support. Explanation Verified Reveal next step SOLVED:The stress-strain diagram for a steel alloy having ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to $90 \mathrm{ksi}$, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded.

Solved The stress-strain diagram for a steel alloy having an Transcribed image text: The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure ...

The stress-strain diagram for a steel alloy having an original diameter of 0.5 in

Solved Problem 3.4 The stress-strain diagram for a steel ... Question: Problem 3.4 The stress-strain diagram for a steel alloy having an original diameter of 0.40 in. and a gage length of 3 in. is shown in the figure below. (Figure 1) Figure 1 of 1 (ksi) 80 70 60 50 40 30 20 10 € (in./in.) 0 0 0.04 0.08 0.12 0.16 0.20 0.24 0.28 0 0.0005 0.001 0.0015 0.002 0.0025 0.0030,0035 Part A Determine the modulus ... Solved The stress-strain diagram for a steel alloy having an Transcribed image text: The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure ... SOLVED:The stress-strain diagram for a metal alloy having ... The stress-strain diagram for a metal alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support.

The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. Solved The stress-strain diagram for a steel alloy having an The stress-strain diagram for a steel alloy having an of original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, c and the ultimate load the specimen will support. The stress - strain diagram for a steel alloy having - Chegg The stress -strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi. determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. Solved The stress–strain diagram for a steel alloy having an ... The stress–strain diagram for a steel alloy having an original diameter of 0.60 in. and a gage length of 7 in. is shown in the figure below. (Figure 1) Figure 1 of 1The plot shows the stress as a function of the strain. The strain is measured from 0 to 0.28 inch per inch on the x axis. Answered: 1. Plot the engineering stress & strain… | bartleby Plot the engineering stress & strain diagram of an alloy having a tensile test result found in Table 1. The tensile test specimen has a diameter of 12.5mm and a gage length of 50.0mm. The given alloy is used to make a 30.0mm diameter cylinder, which is placed inside a hardened circular steel casement with a 30.01mm inner diameter.

SOLVED:The stress-strain diagram for a steel alloy having ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a Gage length of 2 in. is given in the figure, Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding and the ultimate load the specimen will support. Solved The stress–strain diagram for a steel alloy having an Question: The stress–strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. The stress-strain diagram for a steel alloy having an origin ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 0.5 in . and a gage length of 2 2 in . is given in the figure. If the specimen is loaded until it is stressed to 70 70 ksi, determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. Explanation Reveal next step Deformation mechanism and cyclic stress response of ... Cyclic stress response of Zr-4 alloy with the number of cycles under total strain control at room temperature is studied here. As shown in Fig. 4 , the variations of cyclic stress at given strain ranges are constructed from peak tensile to peak compressive stress on logarithmic and linear scales.

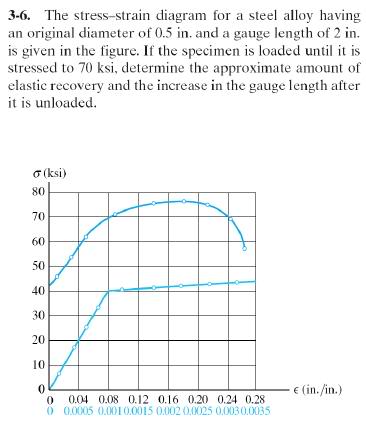

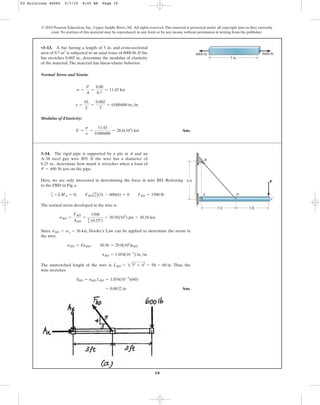

3-5. The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 90 ksi, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded. (PDF) Chapter | Mahmoud Kawash - Academia.edu The stress-strain diagram for a steel alloy having an s (ksi) original diameter of 0.5 in. and a gauge length of 2 in. is 105 given in the figure. If the specimen is loaded until it is stressed to 90 ksi, determine the approximate amount of 90 elastic recovery and the increase in the gauge length after it 75 is unloaded. DOC EGR 280 - Mechanics Problem Set 1 - Oakland University The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support. Ans: E = 40x103 ksi Py = 7.85 kip Pu = 15.0 kip The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 0.5 in. and a gage length of 2 2 in. is given in the figure. Determine approximately the modulus of resilience and the modulus of toughness for the material. Explanation Create a free account to see explanations Continue with Google Continue with Facebook

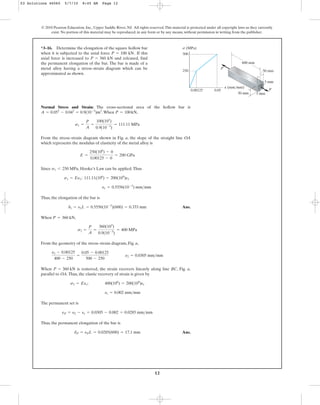

Assignment 5 solutions

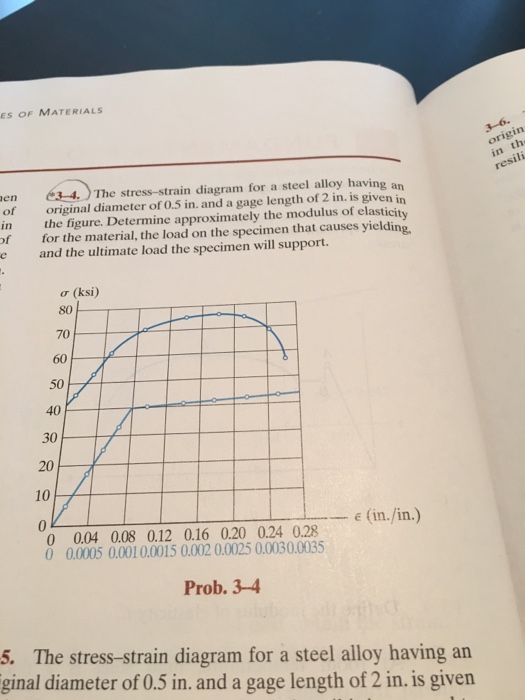

Answered: The stress-strain diagram for a steel… | bartleby The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support. o (ksi) 80 70 60 50 40 30 20 10 e (in./in.) 0.04 0.08 0.12 0.16 0.20 0.24 0.28 0 .0.0005 0.001 0 ...

Solved The stress-strain diagram for a steel alloy having an ...

The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 90 ksi, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded.

Chap 6 Solns

PDF HW 16 SOUTIONS - University of Utah The stress—strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded.

the stress-strain diagram (OABC) for a steel alloy having an ...

Solved The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.6 in and a gage length of 5 in. is shown in the figure below (Figure 1). The specimen is loaded until it is stressed to 70 ksi. Part A Determine the approximate amount of elastic recovery. Express your answer to three significant figures and include appropriate units.

A Robust Image Processing Algorithm for Optical-Based Stress ...

SOLVED:The stress-strain diagram for a metal alloy having ... The stress-strain diagram for a metal alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support.

2) Using the stress-strain curve for a steel alloy shown in ...

Solved The stress-strain diagram for a steel alloy having an Transcribed image text: The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure ...
