Neutral Safety Switch Wires - Ford Mustang Forum 9,120 Posts. #5 · Dec 31, 2008. Hi again. That is correct. The red wire with the blue stripe goes from the ignition switch, all the way around the world, and then out to the starter solenoid. You would just have that wire make a detour through the neutral safety switch. Here's the diagram for the reverse lights. Neutral safety switch | Hot Rod Forum B&M 80629 B&M Neutral/Reverse Safety Switches | Summit Racing. Free Shipping - B&M Neutral/Reverse Safety Switches with qualifying orders of $99. Shop Neutral Safety And Backup Light Switches at Summit Racing. . You may need to fabricate a mount or bend the tab depending on your shifter. Gm Neutral Safety Switch Wiring Diagram - Database ... Gm Neutral Safety Switch Wiring Diagram from 3.bp.blogspot.com. Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice.

B&m neutral safety switch wiring diagram. Installation Instructions TH-700R4 (4L60) Transmission 2) for an example wiring diagram. The second approach is to install a speed sensing device (such as B&M P/N 70244 or 70248) which controls the TCC engagement as a function of vehicle speed. This al-lows TCC engagement to be adjusted to occur any speed or gear (above 1st) which may be desirable for fuel economy considerations. neutral safety switch wiring for a Megashifter ... 4&5)The shifter is a Megashifter for the 82-92 Camaros, so I believe it has both switches. 1984 Monte Carlo SS - currently taking a long-term nap. 2000 Dodge Ram 2500 Cummins Turbo Diesel. #649040 - 02/14/09 08:40 PM Re: neutral safety switch wiring for a Megashifter [ Re: The_Madness ] Joined: Nov 2002. Need B&M floor shifter wiring help. - El Camino Central Forum the blue wire is the hot wire,,the green goes to the backup lights.. the blue wire is fused allready,,looking at the diagram,, the only thing you are changing is the location of the switch,, unplug them from the old switch,,plug them in to the new switch.. you will need to make the wires longer.. wiring neutral safety switch and reverse lights - Chevy ... 04-15-03 06:41 PM - Post# 212798 Just bought a hurst pro-matic 2 ratchet shifter. The wiring instructions are useless garbage. I found this instruction on the web to wire up the neutral safety take the purple starter (sol) wire coming out of the key switch and run it into one of the terminals on the neutral safety switch.Then you take another wire and plug it into the other terminal on the ...

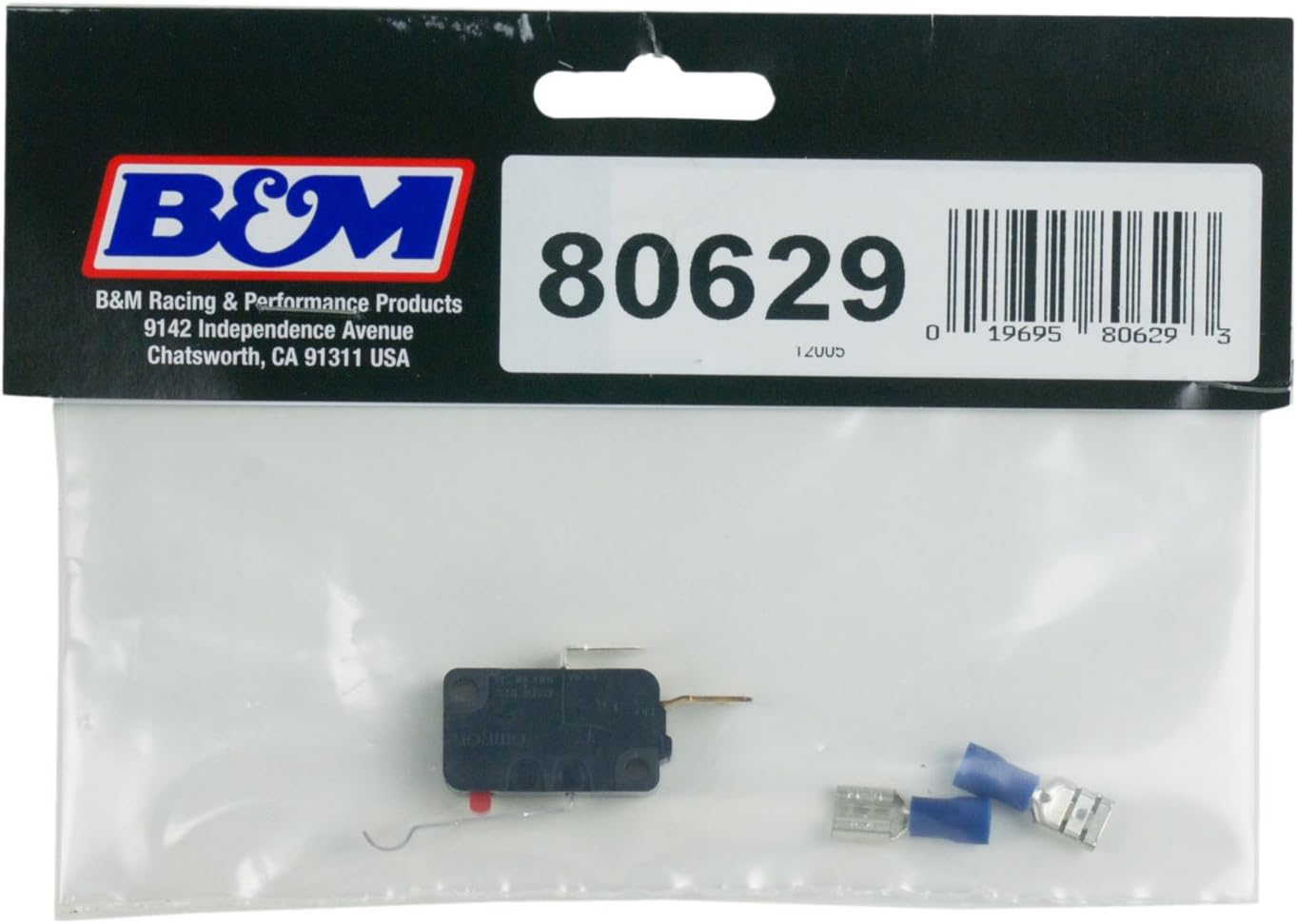

Neutral safety switch and reverse light wiring - NastyZ28.com Green wire leads to the lights after the switch. However, the neutral safety switch is on the steering column up near the ignition cylinder, on top, behind the gauges. It is operated by the rotation of the sleeve on the column. The column sleeve is turned by a z-bar linkage from the stock automatic transmission. B&M 80629 B&M Neutral/Reverse Safety Switches | Summit Racing B&M Neutral/Reverse Safety Switches. B&M neutral/reverse safety switches are the perfect safety devices for your car. They will only allow your car to start when it is in park or neutral, not while it is in gear. If it starts in gear, you can imagine the damage that could be done. Mopar Neutral Safety Switch Wiring Diagram Hurst Shifter 1. Pre-wire Hurst neutral/park start switch (front switch located on shifter assembly).Nov 11, · I removed the factory column switch and figured out how to rewire for the back-up lights. There are two plugins on the column switch. One is for the back-up lights and the other (according to the wiring diagram in NastyZ) is the neutral safety. Neutral safety switch and B&M shifter | For A Bodies Only ... Location: Honolulu & Las Vegas. Local Time: 6:21 PM. The reverse lights and the neutral safety switch are the same unit on the trans. The one with the three wires coming out of it. The Brown/Yellow wire should go to the starter relay for the neutral safety. If its connected properly then your switch on the trans could be bad.

sistemabatesarchivio.it Mar 07, 2022 · Wiring diagrams repair guide chevy k 3500 1998 main enigne fuse box ignition system circuit diagram 1996 renault megane free i have a dual wheel 98 k3500 5 7 needed power window 1995 1999 k1500 ecm pin21 gm truck club forum for sel chevrolet car radio stereo audio chev gas gauge problem the column switch silverado headlight Avoid this GM ... Neutral safety switch into start circuit | Canadian Rodder ... The shifter is a New B&M hammer shifter and the neutral safety switch is supplied as part of the kit. As before the wires on the micro switch are tiny and the wire from the ignition a 10 awg, it just doesn't make sense, to me at least, that the two wires would or should be connected, unless again I'm missing the obvious. B&m Neutral Safety Switch Wiring Diagram - schematron.org gauge wire. Connect post 85 to the N.C. terminal on the new safety switch. Connect post 30 to either wire on the solenoid. The other solenoid wire goes to Ground. There is a new safety switch supplied with this unit. Install this switch in place of the original B&M Neutral safety switch. Neutral safety switch wiring? - The H.A.M.B. The neutral safety switch goes in the starter circuit. Path goes from a 12V source, starter switch (often included as part of the ignition switch), through the neutral safety switch, and to the starter solenoid. Not really rocket science. By the way, Ford automatic transmissions usually have the switch attached to the transmissions, which has ...

Neutral Safety Switch Issue | Ford Muscle Cars Tech Forum I'm putting the B&M pro ratchet shifter in my 65 comet and I was just going to bypass the neutral safety switch but now that I'm looking through the wiring diagram it looks like I might interfere with more than just the NSS if I do that. Can I just twist the signal wires together to bypass the...

Neutral Safety Switch - YouTube AAW's Craig Darpino offers tech tips on common calls involving the Nuetral Safety Switch.

Wiring Help With B&M Pro Ratchet Shifter Neutral Safety ... I'm in the middle of a T5 to C4 transmission swap on my 93' Mustang GT, and I ran into a snag with the wiring. I have B&M neutral safety / reverse light switch that I want to mount to my B&M Pro Ratchet Shifter. I need help locating the neutral safety and reverse light wires. For the neutral safety switch, I think I need to use wires from the ...

Neutral Safety Switch - Hotrod Hotline Neutral Safety Switch. A switch installed in the wire between the ignition switch and the starter solenoid. It connects or interrupts the flow of electricity from the battery to the solenoid that energizes the starter. The switch is activated or deactivated by the shift lever allowing the engine to be cranked in neutral or park and prevented ...

B&M QUICKSILVER SHIFTER NEUTRAL SAFETY SWITCH - YouTube Shout out to talon4wd for helping me out.

PDF SHIFNOID WIRING DIAGRAM - Jegs High Performance wire. Connect post 85 to the N.C. terminal on the new safety switch. Connect post 30 to the solenoid. There is a new safety switch supplied with this unit. Install this switch in place of the original B & M Neutral safety switch. This switch MUST be used so the shifter cannot be electrically activated while in Park or Neutral.

neutral safety wiring on B&M 'sport shifter" on the floor ... Discussion Starter · #5 · Sep 27, 2011. trans neutral safety switch. I`m having trouble hooking up my neutral safety switch on my B&M floor shifter on my 56 chev. that I converted from stick shift to auto 350 trans. I installed wire from safety switch on shifter to terminal on solenoid and made sure my neutral switch is adjusted perfectly.

[email protected] - hotelfloraprato.it Mar 10, 2022 · email protected]

(PDF) Mitsubishi-Triton-L200-Workshop-Manual-2006-2013 ... Mitsubishi-Triton-L200-Workshop-Manual-2006-2013

4l80e Neutral Safety Switch Wiring Diagram - schematron.org Step 1 - Identify the neutral safety switch which is located on the left side Neutral Safety Switch - Wiring Harness Disconnected (Appearance. Im in the middle of making a new harness for my 95 swap 5speed to 4l80e. As most harnesses from the junk yard, my neutral safety switch. Manual Lever Position Switch 4L60E 95 to - 4L80E 94 to Best ...

Neutral Safety Switch Wiring Diagram Chevy - Wirings Diagram As stated previous, the traces in a Neutral Safety Switch Wiring Diagram Chevy signifies wires. Sometimes, the cables will cross. However, it doesn't imply link between the cables. Injunction of two wires is usually indicated by black dot to the intersection of two lines. There will be principal lines that are represented by L1, L2, L3, and so on.

B&M neutral safety headache | Team Chevelle 278 Posts. Discussion Starter · #1 · May 7, 2009. Yup this is me! The shifter is a pro stick.Real easy to hook up. The neutral safety switch goes to the soild purple wire (ignition)& purple wire with grey stripe (starter). When ratching through the gate the engine will start in all gears except nuetral. This just does not seem right.

[email protected] - wunderino-236.de 2 days ago · The one nice thing about P0301 is that it is a cylinder specific misfire code. 1973 Dodge Truck Ignition Wiring Diagram - Roshdmag org March 23rd, 2019 - Tags mopar ignition wiring diagram mopar ignition switch wiring diagram dodge 360 engine diagram electronic ignition wiring diagram chrysler ignitionOnly), Dodge 318-340-360 CI (Race Version w ...

B&M Shifter Neutral Safety Switch - the12volt.com Here's what I do on any rod that uses a B&M shifter: the switch is used as a ground path. You will use a Bosch or simular quality 30/40 amp relay. From your ignition switch 'start', to the '30' leg. From the '87' leg, to your starter. For the '86' leg, you go to some ignition sourced feed- maybe from the ignition switch itself.

Neutral Safety Switch Wiring Diagram Chevy - Wiring Diagram Where Is The Neutral Safety Switch Located At On A 2009 Chevrolet - Neutral Safety Switch Wiring Diagram Chevy. Wiring Diagram arrives with several easy to adhere to Wiring Diagram Directions. It is intended to assist each of the common person in creating a suitable system. These guidelines will likely be easy to understand and apply.

Neutral Safety switch - S-10 Forum From B&M site: If you have a neutral safety switch, locate the switch and identify the neutral safety wires (engine will not crank unless these wires are connected together). If you have a neutral safety switch, disconnect and extend both wires from the GM switch to the switch on the shifter.

PDF Installation Instructions Megashifter The B&M Megashifter shifter can be used in vehicles equipped with most ... have a neutral safety switch, disconnect ... switch to the switch on the shifter. If you have a mechanical interlock cut the wire that goes from the start position on the ignition switch to the solenoid on the correctly adjusted. Install the cotter

Gm Neutral Safety Switch Wiring Diagram - Database ... Gm Neutral Safety Switch Wiring Diagram from 3.bp.blogspot.com. Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice.

Neutral safety switch | Hot Rod Forum B&M 80629 B&M Neutral/Reverse Safety Switches | Summit Racing. Free Shipping - B&M Neutral/Reverse Safety Switches with qualifying orders of $99. Shop Neutral Safety And Backup Light Switches at Summit Racing. . You may need to fabricate a mount or bend the tab depending on your shifter.

Neutral Safety Switch Wires - Ford Mustang Forum 9,120 Posts. #5 · Dec 31, 2008. Hi again. That is correct. The red wire with the blue stripe goes from the ignition switch, all the way around the world, and then out to the starter solenoid. You would just have that wire make a detour through the neutral safety switch. Here's the diagram for the reverse lights.
