Simply so, how do you connect Christmas tree lights? Before you string Christmas tree lights on a real tree, plug all the strands in to make sure they're working. Then, plug the first strand of lights into the nearest outlet or extension cord, and wrap the lights around your tree's branches. Start the at bottom of the tree, and work from the trunk out to the branch tips. TREE INSTRUCTIONS. Instructions for select traditionally-lit trees may be found below. If the instructions for your product are not listed, our TREE & LIGHTS ASSEMBLY PAGE will walk you through the needed steps to set up your tree. If you have any further questions, please visit our TROUBLESHOOTING PAGE or CONTACT US for assistance.

Description: Home Accents Holiday - Pre-Lit Christmas Trees - Artificial in Pre Lit Christmas Tree Wiring Diagram, image size 400 X 400 px, and to view image details please click the image.. Here is a picture gallery about pre lit christmas tree wiring diagram complete with the description of the image, please find the image you need.

Pre lit christmas tree plug in diagram

6ft Pre-Lit Dark Blue Glittered Balsam Fir Artificial Christmas Tree Clear Lights - Wondershop™. Wondershop Only at. target. ¬. $300.00. Free standard shipping. Not in stores. Add for shipping. 3ft Pre-Lit Alberta Spruce Iridescent Tinsel Artificial Christmas Tree Clear Lights - Wondershop™. plug can be fully inserted. Do not alter or replace the plug. - For trees with extension cords only. 2. Attention Should you choose to not read the instructions, please read this: It is essential to replace burned out bulbs as promptly as possible. The construction of all standard mini Christmas lights is series wiring. This means If the tree is plugged into a switch controlled wall outlet, make sure the switch is turned ON. Be sure you have plugged all the sections together. Some sections will have multiple plugs. Check for loose or burned out bulbs. This can be accomplished by placing bulbs from an unlit strand into a fully lit strand.

Pre lit christmas tree plug in diagram. Refer to the lighting diagram supplied with the tree for proper instructions. 2. Identify your Christmas tree light type. ... Any cracks to the plates can result in serious injury if you plug in the tree. In short, ... If this guide taught you how to fix pre-lit Christmas tree lights, share it with friends and family who need a hand. ... FOR TRADITIONAL PRE-LIT TREES. Traditional pre-lit trees have light strings that are manually connected end-to-end outside of the tree's center pole. These trees come with an on/off foot pedal. Begin by assembling the tree according to the assembly guide. Step 1 | Plug in the Tree. Identify the extension cord with a foot switch and plug it ... Live. •. 4 Basic Steps for Troubleshooting Prelit Trees. Step 1. If the tree has multiple light plugs stacked together, the most common reason for a section not turning on or flickering is often as simple as one of these plugs coming loose. Check that all plugs are secure. Prelit Christmas trees take the aggravation out of untangling wires and trying to get the lights arranged artistically around the tree. Because the lights are already attached, you don't have to worry about whether to spiral the strings around the circumference or drape them from the treetop to the lower branches.

Lights on our EASY PLUG™ models are automatically connected inside the trunk, whereas traditional pre-lit trees have light strings that are manually connected from end-to-end outside the tree. Step 1 | Assemble the Lights. PLEASE NOTE: If you ordered an Easy Plug Tree, you may skip this step as the lights are automatically connected. PRE‐LIT HINGED TREE ASSEMBLY INSTRUCTIONS ... Check the light string fuse in the section plug that is out, but unplug tree first. If the fuse is blown (see if wire inside is intact or glass is blown).Replace the blown fuse following the diagram. There is a spare fuse included for easy replacement. ... If any lights do not work on your pre-lit tree, please check the following instruction ： 1. If entire tree or a section of the tree does not light: a) Turn the pole gently to make sure pole and pole are connected into place. b) Check all plugs are properly connected (See fig below) and power cord is plugged into wall outlet. LED Transformer 12V 9W LED Class 2 Power Supply IP44 Waterproof Low Voltage Adapter for String Light, Christmas Tree, Projector Light,Holiday Lighting. 4.0 out of 5 stars. 17. $10.98. $10. . 98. Get it as soon as Thu, Sep 23. FREE Shipping on orders over $25 shipped by Amazon.

The tree also has lots of plug-in ones that will connect to the main wire on each section, then I made a diagram showing which branch numbers get plugged into the tree plug and.Dec 16, · When my better half started to unpack the artificial pre lit Christmas tree she evidently cut through a strand of wires while opening one of the boxes (one ... Here are instructions on how to put up your pre-lit Christmas Tree, courtesy of http://www.christmascentral.com Artificial Christmas Trees are a great way to... TREE TOP C B A TREE STAND 62 in / 157.4 cm TREE ASSEMBLY DIAGRAM 9 ft / 2.74 m Step 9 Step 7 Step 5 Extension cord with ON/OFF FOOT PEDAL Open add-on outlet for tree top OPEN tree top tree stand ACB IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY 9 ft / 2.74 m Pre-Lit Christmas Tree ITM. / ART. 634276 with Easy Shape Technology™ allows ... an extension cord unless plug can be fully inserted. Do not alter or replace the plug. Read and follow all instructions that are on the product or provided with the product. SAVE THESE INSTRUCTIONS PRE-LIT TREE ASSEMBLY INSTRUCTIONS: 1. Follow the stand assembly instructions to set up the tree stand. a. Pull apart the legs of the stand so

D.I.Y, Lighting. Debbie. On the Cosmo 6ft. pre-lighted LED douglas fir you do not need both hook up cords, just the one with 1 male fitting and 3 female fittings. Connect the male end to the control cord. Now connect the 3 female ends to one male end of each section of the tree, (base, middle, and top sections), in any order.

Note: One side of this plug is for plugging into the end connector of power cord. The opposite side of this plug is a polarized outlet which is for tree top only. 1. Grasp power supply plug and remove from its power source. 2. Locate the plug fixed on bottom section (C). Slide access cover on top of plug towards prongs. 3. Remove blown fuse. 4.

If you see half of lights dim, don't panic! You can fix an unlit section on your Christmas tree with just 3 easy steps. 1. Visually inspect each connector pl...

I lost my instructions to assemble my pre-lit Christmas tree. I have two sections that are not lighting up, which brought me to this site. After reading several posts, I got some ideas but wanted more details on the "how to plug in the lights" and found this video that was very helpful.

Pre-lit artificial Christmas trees offer many advantages over real trees. Pre-lit trees are easy to set up, cost about the same as real trees and do not require the user to add lights. After Christmas, you can disassemble the tree and store it for next year. Before you put the ornaments on the tree, make sure that the tree is properly assembled ...

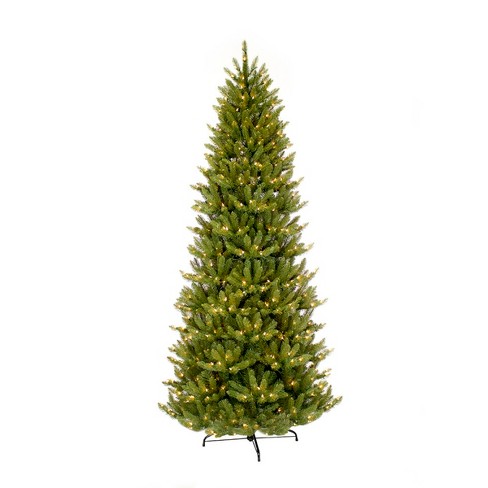

9 ft. Eastcastle Pre-Lit LED Balsam Fir Artificial Christmas Tree with White Lights Create a classic yuletide theme with this Create a classic yuletide theme with this 9-foot Eastcastle Balsam fir pre-lit artificial Christmas tree. A foot pedal lets you easily operate the lights, while the energy-efficient LEDs continue to keep their cool ...

Treetopia's pre-lit Christmas trees already have the recommended number of bulbs according to the manufacturer's standards. They're professionally hand-strung, too, so the set-up will be quick and easy. For unlit Christmas trees, a rule of thumb is to string about 100 to 150 lights per foot of your tree. Use our Lights Calculator to help ...

TREE TOP B A TREE STAND 56 in / 142.2 cm TREE ASSEMBLY DIAGRAM 7.5 ft / 2.28 m Step 8 Extension cord with ON/OFF FOOT PEDAL Step 5 OPEN tree top tree stand A B IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY 7.5 ft / 2.28 m Pre-Lit Christmas Tree ITM. / ART. 634274 with Easy Shape Technology™ allows tree branches to spring into shape. Just

Home Accents Holiday 9FT Flocked Fraser Fir LED Pre-Lit Artificial Christmas Tree With 3000 Color Changing Lights and 10-Function. Model# 21LE31009 (243) $ 449 00. New This Season. Home Decorators Collection 7.5 ft Kingsley Balsam Fir LED Pre- Lit Artificial Christmas Tree with 1,400 SureBright Color Changing Mini Lights.

When it comes to decorating your home during the holidays, GE branded pre-lit artificial Christmas trees have all the lighting technologies that you need to match your style. Color Effects® LED pre-lit artificial Christmas trees come with an easy-to-use remote control that allow you to cycle through 7 colors and 53 functions.

Tip: Typically, plan for about 100 Christmas lights per foot; a 6-foot tree would get 600 lights. Learn how to Put Lights on a Christmas Tree Vertically. The vertical method to hanging Christmas tree lights is a pattern that began circulating a number of years in the past.

If the tree is plugged into a switch controlled wall outlet, make sure the switch is turned ON. Be sure you have plugged all the sections together. Some sections will have multiple plugs. Check for loose or burned out bulbs. This can be accomplished by placing bulbs from an unlit strand into a fully lit strand.

plug can be fully inserted. Do not alter or replace the plug. - For trees with extension cords only. 2. Attention Should you choose to not read the instructions, please read this: It is essential to replace burned out bulbs as promptly as possible. The construction of all standard mini Christmas lights is series wiring. This means
