The one in the diagram is a magnetic lock, but the premise is the same for an electric strike. The reader receives the access credentials, sends them to the controller for authentication, and if they are approved, the controller tells the power supply to either give or cut off power to the lock, which opens the door. Search Wiring Diagrams for HES and Securitron products. Use the fields below to narrow down your search. You can also view all Wiring Diagrams by leaving the fields blank and clicking the "Search" button. PRO TIP: Be Broad! There are additional filters on the Results page to further narrow down your search.

Hes 5000 Series Electric Strike Wiring Diagram Sample. hes 5000 series electric strike wiring diagram - What's Wiring Diagram? A wiring diagram is a type of schematic which utilizes abstract pictorial signs to show all the affiliations of elements in a system. Wiring layouts are made up of 2 points: icons that represent the elements in the circuit,…

Electric strike wiring diagram

1500 Series or 1600 Series Electric Strike 1500 Series and 1600 Series Electric Strikes Installation Instructions 1 Product Components Specifications 1 2 3 ASSA ABLOY, the global leader in door opening solutions 3 1 2 Pigtails (12 VDC and 24 VDC) Trim Enhancer MINIMUM WIRE GAUGE REQUIREMENTS VOLTAGE 12VDC 24VDC Solenoids are rated at +/- 10% ... Adams Rite Electric Strike Wiring Diagram Sample. adams rite electric strike wiring diagram - A Beginner s Overview of Circuit Diagrams A first consider a circuit representation might be complicated, however if you could read a train map, you can check out schematics. The objective is the same: obtaining from point A to aim B. Literally, a… Dimension: 1024 x 418. DOWNLOAD. Wiring Diagram Sheets Detail: Name: adams rite electric strike wiring diagram - Adams Rite 7400 Wiring Diagram regarding Cute Electric Strike Wiring. File Type: JPG. Source: littleforestgirl.net. Size: 48.95 KB. Dimension: 745 x 444. READ Electrical Wiring Diagram House Collection.

Electric strike wiring diagram. strike orange screw (a) screw (b) screw (a) screw (b) solenoid status switch latch monitor fail safe fail secure solenoid connector strike voltage adaptor cable wire color see table below monitored version only 91-0098 for wood door applications spacer assy optional kit p/n wdc7400 shim kit p/n 91-0933 typical electric strike wiring diagram ... typical electric strike wiring diagram left and tighten. between strike and latch. fail secure configuration rotations, move the slide to the fail-safe operation field reversible (fail secure) to fail safe locks when energized. used in step 2 loosen screw (b) approximately 2 (field selectable) solenoid wiring diagram trigger shims Electric Strike Kit: https://amzn.to/2VjiwogExtra Push Entry Clickers:https://amzn.to/2EbUAfzLow Voltage Wire: https://amzn.to/2EvMuQkIn this video we show y... Electric Strike Wiring Diagram- wiring diagram is a simplified enjoyable pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the skill and signal associates amid the devices.

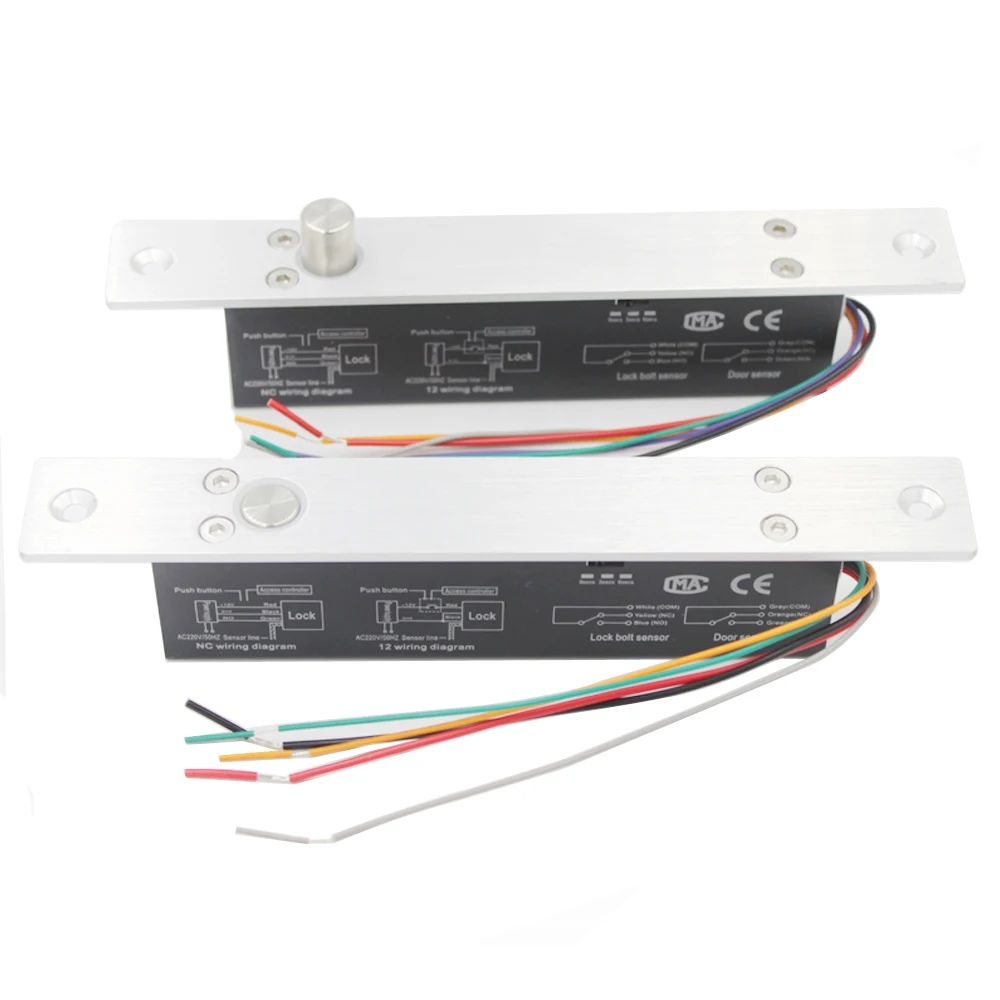

electric strike Diagram 2 A mortise lock aligned with its centerline 3/8" below the centerline of the electric strike. 2) The depth and positioning of the electric strike cavity. It is important to select an electric strike with the correct cavity depth to accommodate the lock. Many electric strikes have shallow cavities and GSC3570 Connection & Wiring Diagrams - "Fail Secure" Electric Strike, POE Power Supply Outdoors-+ Fail Secure Electric Strike Door Connect Indoors Motion Sensor-+ S Power Supply 12V GND Exit Button +12V GND IN+ AIN1 NC1 AIN3 AIN2 COM1 NO1 GND POE power supply 802.3af 12.5W IN + Active voltage range 9-15V POE Switch HES 8300 Electric Strike. Faceplates & Accessories, Documents, Certifications & Listings. The HES 8300 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical ... Electric Door Strike Wiring Diagram. Collection of electric door strike wiring diagram. A wiring diagram is a simplified traditional pictorial representation of an electrical circuit. It reveals the parts of the circuit as simplified forms, and also the power as well as signal links between the gadgets. A wiring diagram normally offers information about the…

Common wiring diagrams. Resolution: The following common wiring diagrams are available:One Single Door with Panic BarElectric Latch Retraction, with Auto OperatorDelayed egress - Fire Rated ApplicationAuto Operator and actuatorElectr... Resolution: Electronic Protocols:Access Control Door with electric trimAccess Control with electric strike ... sample wiring diagrams. ... wireless push plate with 24vdc electric strike or maglock 9 wireless push plate w/ sdc electric latch retraction 9 simultaneous pairs within a single housing (basic operation) 10 hands free basic application (no latching or locking hardware) 11 illustrated within Diagram 2. 2. If your strike is supplied with the LATCHBOLT MONITOR (LBM), or LATCHBOLT STRIKE MONITOR (LBSM), see Diagrams 3 & 4 for wiring instructions. 3. For available faceplate options, see page 4. Prepare Strike CAUTION! Before connecting any device at the installation site, verify input voltage using a multimeter. This electric strike ships as 12V. If you need to convert the unit from 12V to 24V, see Diagram 2. 2. If your strike is supplied with the LATCHBOLT MONITOR (LBM), or LATCHBOLT STRIKE MONITOR (LBSM), see Diagrams 3 & 4 for wiring instructions. 3. For available faceplate options, see page 4. Prepare Strike a To prevent electric shorting ...

Hes 51wk Electric Strike Wiring Diagram - One of the most hard automotive repair tasks that a mechanic or repair shop can acknowledge is the wiring, or rewiring of a car's electrical system.The trouble really is that every car is different. similar to bothersome to remove, replace or fix the wiring in an automobile, having an accurate and detailed Hes 51wk Electric Strike Wiring Diagram is ...

Magnetic Lock Wiring Diagram Much like the door access control system diagram above, the mag lock wiring diagram relies on a few simple basics: electricity supply, switches, and, of course, locks. Magnetic locks , also referred to as mag locks or maglocks for short, rely on a constant flow of electricity to stay sealed.

We show you how an electric strike works with a remote door opener and a push to exit button. This is a simple electric strike setup with a manual push to ex...

SERIES HEAVY DUTY ELECTRIC STRIKES Hanchett Entry Systems, Inc. N. 17th Ave. Phoenix, AZ diagramweb.net Wiring diagram for 12/24 volts FIG. A 12 VOLT DC FIG. B 24 VOLT DC NOTE: The is supplied as a 12 volt DC unit. For 24 volts DC, see figure B. INSTRUCTIONS: 1. Cut the violet and black wires. 2.

The 2000 Series electric strike is ﬁ tted with a UL approved changeover microswitch (max. rating: 125 VAC, 3 A / 60 VDC, 200 mA) to monitor the latch and strike status. The wiring diagram for the monitoring schematic is shown in Fig. 7 and on the back of the strike.

Electric Door Strike Wiring Diagram - wiring diagram is a simplified normal pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the capacity and signal associates in the midst of the devices. A wiring diagram usually gives guidance not quite the relative face and promise of ...

Blue Wire VOLTAGE AND WIRING ELECTRIC STRIKE ATTACHMENT 1. Before installing the strike, make the necessary wire connections. Refer to the table below in. (Fig. 7) for ESK/ESP strikes. for latch/deadbolt and monitor on ESP strikes only. 2. When you are installing the strike into the frame cut-out (Fig. 3, page 06), tuck the

electric door strike wiring diagram . electric door strike wiring diagram . fast trac form . riser drawings for auto operators . Common Wiring D . quote request form . can automatic door opener work with and card reader strike . quote request form ...

1006 Electric Strike Body Trim Enhancer (with screws) 1006 Series Electric Strike Installation Instructions HES, Inc. Phoenix, AZ 800-626-7590 ... (LBSM), see Diagrams 3 & 4 for wiring instructions. 3. For available faceplate options, see page 4. Prepare Strike Prepare Frame LBSM WIRING White Orange Closed When Green Open When Common LBM WIRING ...

as shown in Diagram 2. 3 VioletIF using the Latchbolt Monitor (LBM) or Latchbolt Strike Monitor (LBSM), THEN REFER to Diagrams 5 and 6 to complete wiring (see page 3). Verifying the Operation Mode The HES 9400/9500/9600/9700 Electric Strike is pre-set for FAIL SECURE OPERATION as shown in Diagram 3. 1 VERIFY that both keepers are in

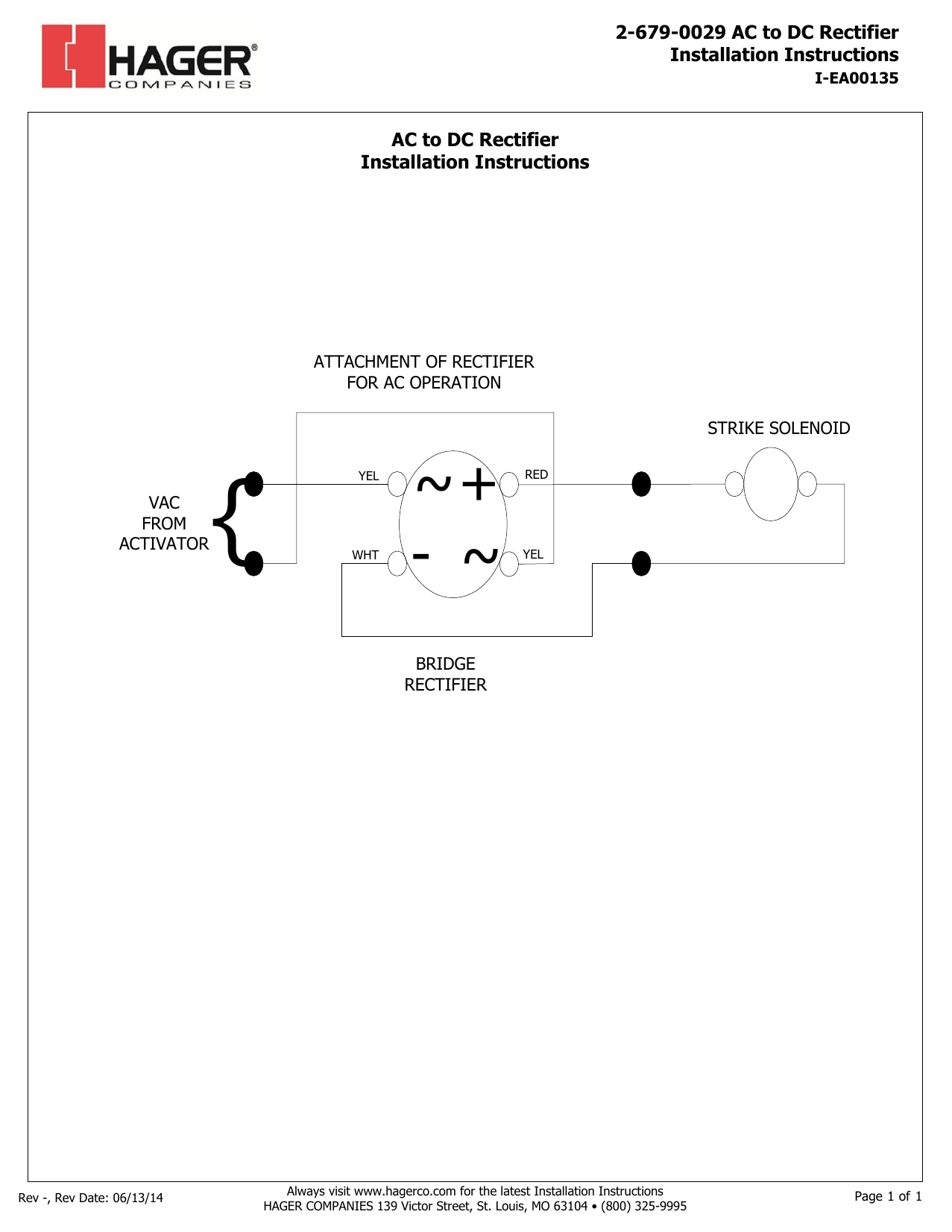

- WIRING INSTRUCTIONS— fail secure strike with one button Power Supply Push Button N/O Fail Secure Strike Polarity Insensitive Depressing the push button would close the circui t, allow power to flow and release the strike. Power Supply may be AC or DC, depending on the requirements of the strike.
